Neighbourhood App

Introduction

The reason

I study software engineering, and for school we had to do a project in ASP.NET Core. I was placed in a group, and together we had to make a neighbourhood app. There were some requirements, but they were quite vague. Most of the implementation was left up to us.

Spotlight

Front End

I was responsible for most of the front end, and I took some creative liberties with that. The requirements stated that we had to use bootstrap or a bootstrap like framework to make our front end. I decided we were going to use Material Design Components. This is a Google maintained framework that has all the styling and components required to make your webapp in the material style.

WebAuthn

A big feature that I worked on is logging in. I was responsible for the login flow, and I decided to go one step further than most. I added WebAuthn to the project. At the time I was very interested in WebAuthn, so I found a library that allowed us to implement this specification as a 2FA option. WebAuthn allows a user to confirm their identity using their device instead of a code. I also added the option of filling in a 2FA code if you're not on your WebAuthn device.

The execution

Init

We were handed an empty github repository and a list of requirements. We started by scaffolding the Identity pages so we could edit them, and establish a link to our database. We then converted the scaffolded bootstrap pages to Material Design Components. This was a very long process that took multiple weeks.

Logging in

I was responsible for the login and register flow. Since we have a lot of extra data for our User class, the register form was very long. This would have deterred users from filling it in, thus losing us business. We decided to split the form up into multiple parts. We did this so the user felt like it was less work.I also made the login flow. This consists of a username and password. For most users this is enough to log in. But for the more privacy oriented users I also added a 2FA option. ASP.NET Core Identity has this built in, but you still have to do some manual work to get it up and running. I was seeking a challenge in this project, and this is one area where I could really learn something. At the time I was really interested in WebAuthn, and I decided to implement this standard in our application. I found a library that helped me accomplish this. I decided to use WebAuthn as a two factor authentication method. It took quite some time to get everything to work, because the library I used was quite complicated and cluttered, but eventually I managed to get everything connected in the right way. I also added a way to fill in a normal 2FA code if you're not on the device you registered WebAuthn with.

Users, Posts, Comments

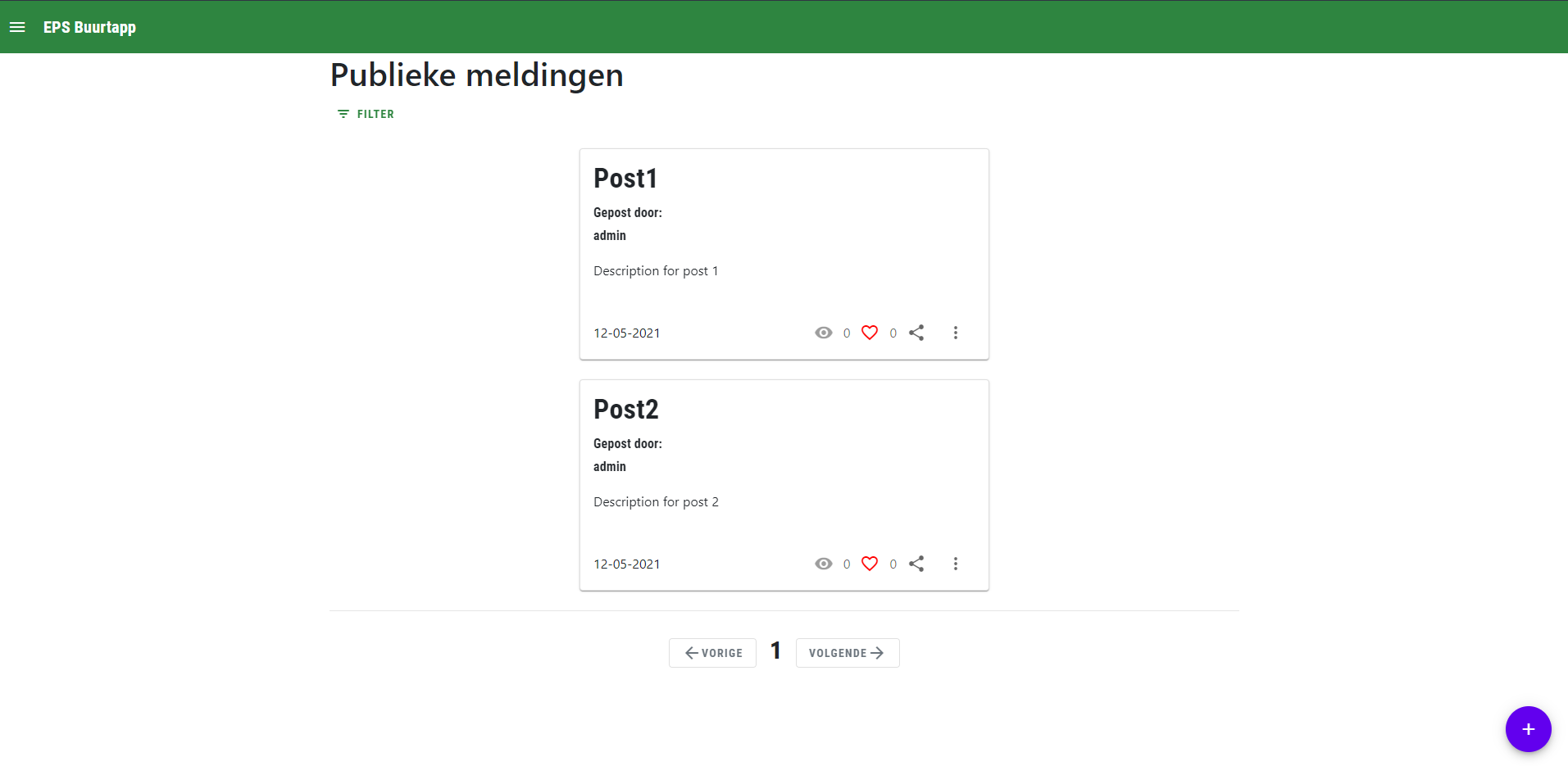

In the meantime we started working on a lot of the back end code for our neighbourhood app. We added User classes and got a lot of work done on the code for posts. The goal of the app was to be a platform where people in a specific neighbourhood could make posts with a title, a description, and possibly an image. The residents of the neighbourhood can use these posts to raise issues like filthy parks or public nuisances.

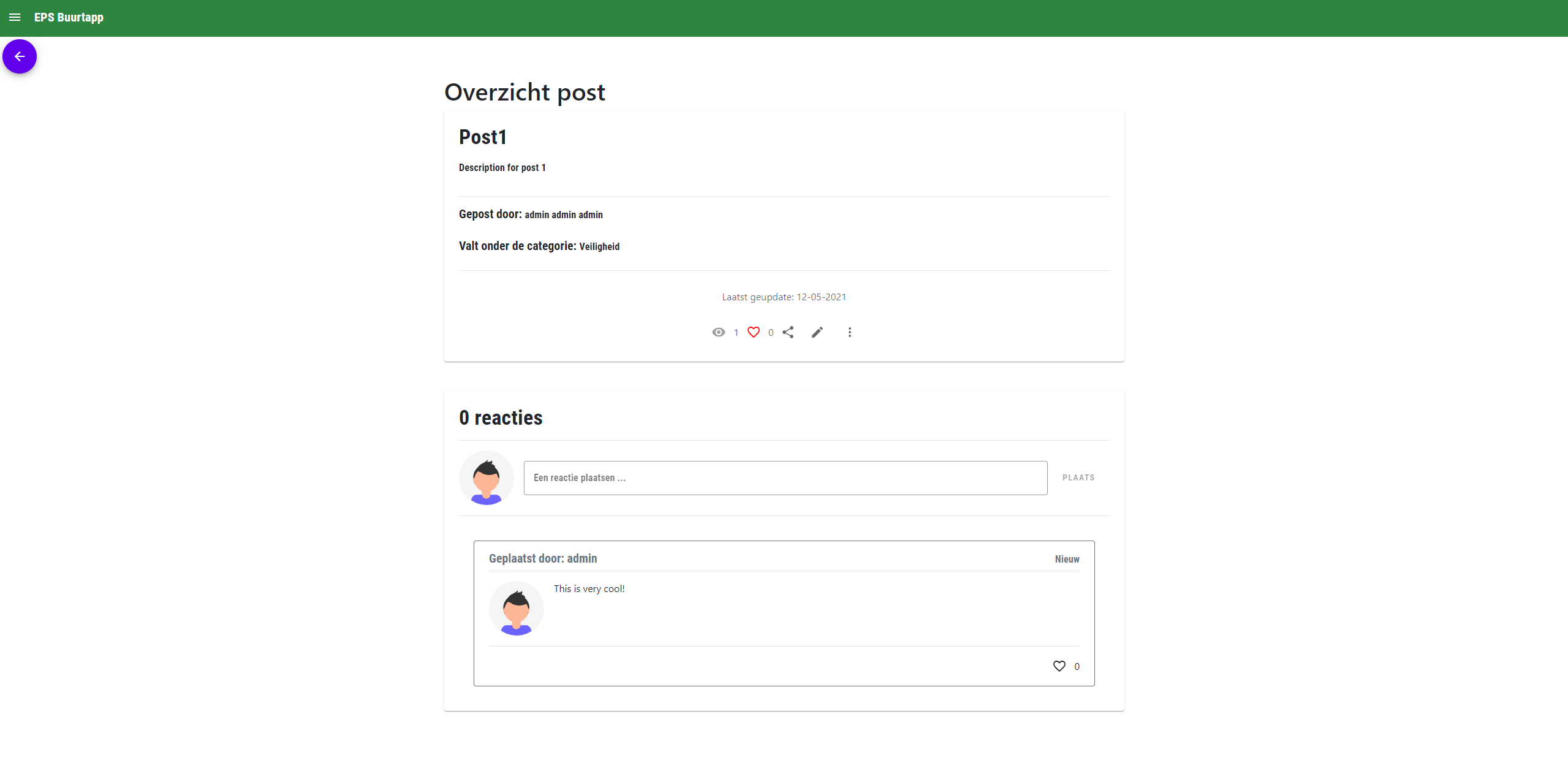

The community can then discuss the post in the comments, and figure out a solution to the problem together. These posts could have comments and likes. We implemented all of this, and I styled the pages. It was important that the comments and likes wouldn't reload the entire page. We implemented this by using AJAX to send a request to the server to like a post or comment or place a comment, and when the server responded that everything was okay update the front end. This is a very common pattern, and we had no issues implementing this.

Pipeline

I also added a pipeline to the project that would scan the project using a locally hosted SonarQube instance. This allowed us to get insight into bugs and code smells we had in the project. The pipeline took a lot of tries to get working, and we essentially wasted all of the school's Github Action Credits. Eventually we got it working, and enjoyed our very useful insights.

Profiles

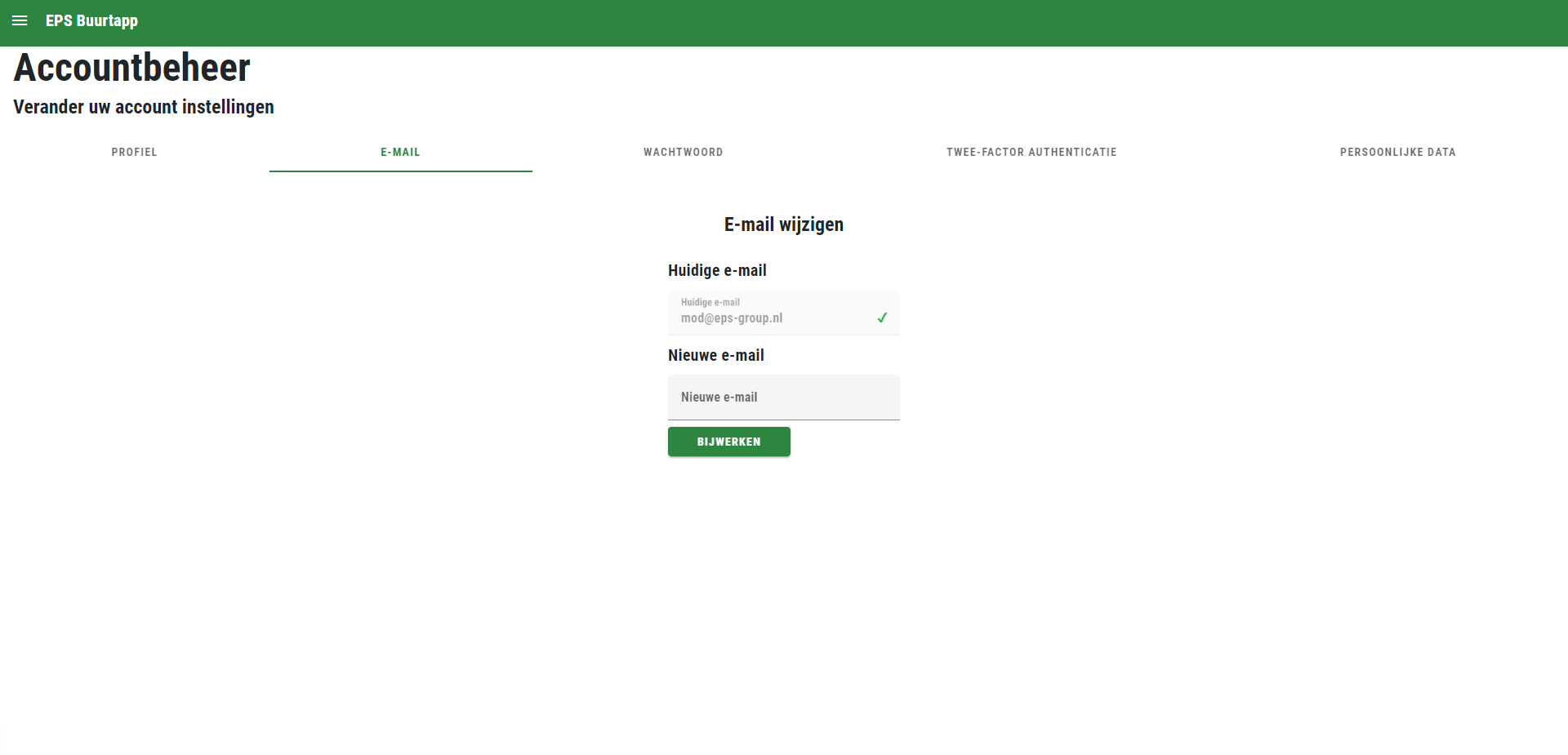

We then started working on profiles. Microsoft's Identity provides you with a User object that you can extend. You can use this to add functions and data to the object. We had to show this extra data we added to the user, so we needed to add pages that showed this. I worked on most of the profile pages, while my team worked on comments and posts.

Privacy

We added a privacy policy and an about page, so the user would be informed about the data we collected. This was a big focus of the requirements. The app had to be as privacy friendly as possible.

Grading

The application was pretty much ready to be reviewed at this point, and we had just the finishing touches left to do. After this was done we handed our project in for grading, and the app got a 10/10.

Lessons learned

ASP.NET Core

I learned a lot about ASP.NET Core, and with that C#. C# is very similar to Java, but there are certainly some nice to have differences. My study started with teaching Java, so I learned quite a bit about the differences and similarities between Java and C#. I also learned a lot about the concepts of MVC, specifically in the context of ASP.NET. I think it's quite a nice framework to work with, but I dislike the amount of scaffolded pages and code you get with it. It means that there is a lot of code that you don't get to see, so you have less control over your code.

MDC

This was my first time working with MDC, and I learned a lot about what is and isn't possible with this library. It was a very nice development experience, although it was frustrating at times. The documentation for this library was not the best, and I struggled to find the right code to make it work. In the end everything worked out fine, so I'm very satisfied with MDC.

Teamwork

The project was a team project. I learned a lot about working in a team, both working on different parts of the application and working on the same thing. I had a great team for this project because we completed each other. When someone's skills were lacking in one area, another team member could step in to explain whatever they had trouble with. It was a great experience and really helped me work better in a team.
